Fixed Aluminum Stadium Bench Seating Bleachers Grandstands With Little Maintenance

Burgeon Sports Facilities Co., Limited
Contact Now

Fixed Aluminum Stadium Bench Seating Bleachers Grandstands With Little Maintenance

Brand Name : Burgeon

Model Number : Aluminium Grandstands

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 3000 seats per month

Packaging Details : Negotiation

Product Name : Fixed aluminum outdoor bleachers

Deck width : 600mm/660mm

Riser height : 150mm

Relative words : Stadium aluminum benches

Key words : Aluminum grandstands

Application : Sport field

Contact Now

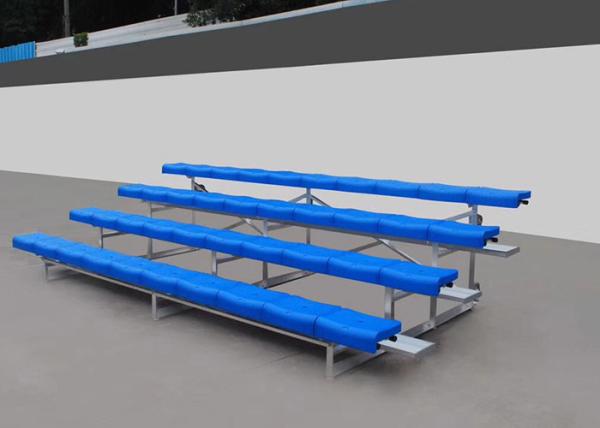

Fixed Aluminum Outdoor Bleachers/Grandstands with Little Maintenance

Desciption

Burgeon bleacher consist of aluminum bench, aluminum bleacher, angle frame bleacher, demountable bleacher and I beam bleacher which give clients different options. Burgeon fixed bleacher is engineered for safety, easy assembly and durability. The all-aluminum framework is combined with anodized aluminum seat planks and mill-finished foot planks. This fixed bleacher system requires little or no maintenance for years to come.

Specification

Item Content Specifications
Understructure
1 Frame Prefabricated 50*5mm aluminum angle joined by means of aluminum angle cross bracing. Each frame shall be unit-welded, using metal inert gas method to form into trapezium shape.
2 Bracing Adopt 40*5mm aluminum angle cross & horizontal bracing.
3 Hardware Stainless bolts and nuts; Anodized Aluminum Alloy Cramp Bracket
4 Foot Pad Non-marking rubber foot pads to protect wood floors.
Decking & Accessories
1 Chief Deck 240*40*3mm Anodized Aluminum Alloy 6063-T6 Foot Plank, extruded with a concave and convex grooves for impact and deformation resistance.
2 Vice Deck 240*40*3mm Anodized Aluminum Alloy 6063-T6 Foot Plank, extruded with a concave and convex grooves for impact and deformation resistance. (Double Foot Planks)
3 Cramp Bracket Anodized Aluminum Alloy Cramp Bracket
Seat Option
1 Aluminum Seat Plank 240*40*3mm Anodized Aluminum Alloy 6063-T6 Seat Plank, extruded with a concave and convex grooves for impact and deformation resistance. (Polymer Echo Seats are available)
Basic Design Data
1 Design Standard BS 5950 Structural Use of Steelwork in Building; EN1991-1-3 for Assessment of Wind Load; BS6399 Part 2: Loading for Buildings-Code of Practice for Wind Loads.
2 Dimension Deck width:600mm/660mm; Riser height:150mm
3 Seat Height ≥430mm
4 Load Vertical dead load for stand platform ≥350kg/m, Horizontal wavering load for stand platform ≥36kgm

FAQ

1. Q: What kind of product range do you offer?

A: Burgeon sport focus on spectator Seating Solution including Fix stadium seat, telescopic seating system, aluminum

bleacher and metal bleacher.

2.Q: What do I need to start an order?

A: Normally give us product type, seating quantity, project drawing with PDF/ Auto CAD format, then we can start to design

and offer for you.

3. Q: How long will I receive my prodyct after ordered?

A: It depend on the size of project order and the distance from loading port to destination port, our production lead time is

normally 3-4 weeks after the order/payment is received.

4.Q: What is the warranty for your product?

A: The warranty depend on proejct requrement, Burgeon sport offer a minimum 3years warranty for all products.
